AMC-F Chemical Standard PTFE-Lined Magnetic Drive Pump
Product Overview
The AMC-F series fluoroplastic-lined chemical process magnetic drive pumps are a new type of chemical environmental protection magnetic drive pumps with high corrosion resistance, high durability, and high safety. Designed in compliance with the HG/T2730 standard, this series of pumps is widely used in various medium-to-high-end chemical liquid circulation fields. The series adopts cast iron or ductile iron shells lined with F46, PFA, and other injection-molded materials through one-time molding. It is designed with a self-circulating heat dissipation and cooling structure as well as a heat insulation design, ensuring the pump's high efficiency and long service life.
Product Features
- High Corrosion Resistance Performance
- Heat-Free Magnetic Coupling Technology
- Load-Bearing System Standard-Equipped Pressureless Sintered Silicon Carbide
- High-Efficiency Hydraulic Energy-Saving Technology
Technical Specifications
| Model | Diameter | Motor | Performance Parameter | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Inlet | Outlet | Power (kW) | (Hp) | Voltage (V) | Frequency (Hz) | Speed (r/min) | Rated Head (m) | Rated Capacity (m³/h) | |
| AMC-F32-20-125 | 32 | 20 | 1.1 | 1.5 | 3ø-380 | 50 | 2760 | 20 | 3.6 |
| AMC-F32-20-160 | 32 | 20 | 2.2 | 3 | 3ø-380 | 50 | 2760 | 32 | 3.6 |
| AMC-F40-25-125 | 40 | 25 | 1.5 | 3 | 3ø-380 | 50 | 2760 | 20 | 6.3 |
| AMC-F40-25-160 | 40 | 25 | 3 | 4 | 3ø-380 | 50 | 2760 | 32 | 6.3 |
| AMC-F40-25-200 | 40 | 25 | 5.5 | 7.5 | 3ø-380 | 50 | 2900 | 50 | 6.3 |
| AMC-F50-32-125 | 50 | 32 | 2.2 | 3 | 3ø-380 | 50 | 2900 | 20 | 12.5 |
| AMC-F50-32-160 | 50 | 32 | 4 | 5 | 3ø-380 | 50 | 2900 | 32 | 12.5 |
| AMC-F50-32-200 | 50 | 32 | 7.5 | 10 | 3ø-380 | 50 | 2900 | 50 | 12.5 |
| AMC-F50-32-250 | 50 | 32 | 11 | 15 | 3ø-380 | 50 | 2900 | 80 | 12.5 |
| AMC-F65-50-125 | 65 | 50 | 3 | 4 | 3ø-380 | 50 | 2900 | 20 | 25 |
| AMC-F65-50-160 | 65 | 50 | 5.5 | 7.5 | 3ø-380 | 50 | 2900 | 32 | 25 |
| AMC-F65-40-200 | 65 | 40 | 11 | 15 | 3ø-380 | 50 | 2900 | 50 | 25 |
| AMC-F65-40-250 | 65 | 40 | 18.5 | 25 | 3ø-380 | 50 | 2900 | 80 | 25 |
| AMC-F80-65-125 | 80 | 65 | 7.5 | 10 | 3ø-380 | 50 | 2900 | 20 | 50 |
| AMC-F80-65-160 | 80 | 65 | 11 | 15 | 3ø-380 | 50 | 2900 | 32 | 50 |
| AMC-F80-65-200 | 80 | 50 | 18.5 | 25 | 3ø-380 | 50 | 2900 | 50 | 50 |
| AMC-F80-65-250 | 80 | 50 | 30 | 40 | 3ø-380 | 50 | 2900 | 80 | 50 |
| AMC-F100-80-125 | 100 | 80 | 11 | 15 | 3ø-380 | 50 | 2900 | 20 | 100 |
| AMC-F100-80-160 | 100 | 80 | 18.5 | 25 | 3ø-380 | 50 | 2900 | 32 | 100 |
| AMC-F100-80-200 | 100 | 80 | 30 | 40 | 3ø-380 | 50 | 2900 | 40 | 100 |
*The above characteristic testing is based on water transfer at normal speed under 20°C. The performance parameter error is approximately ±10%. Pump performance varies depending on the proportion and density of the liquid medium.

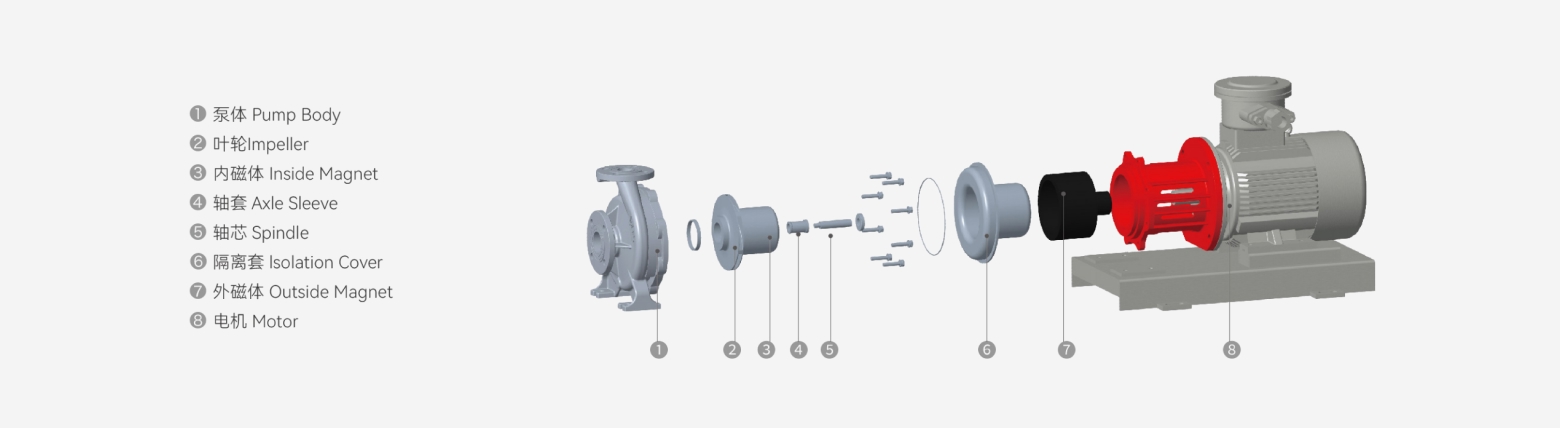

Pump Structure
The AMC-F Pump structure consists of the Pump Body, Impeller, Inside Magnet, Fluoroplastic Isolation Sleeve, Outer Magnetic Rotor, Bearing, Pump Cover, Axle Sleeve, and Motor, forming a leak-free & corrosion-resistant magnetic drive assembly for harsh chemical applications.

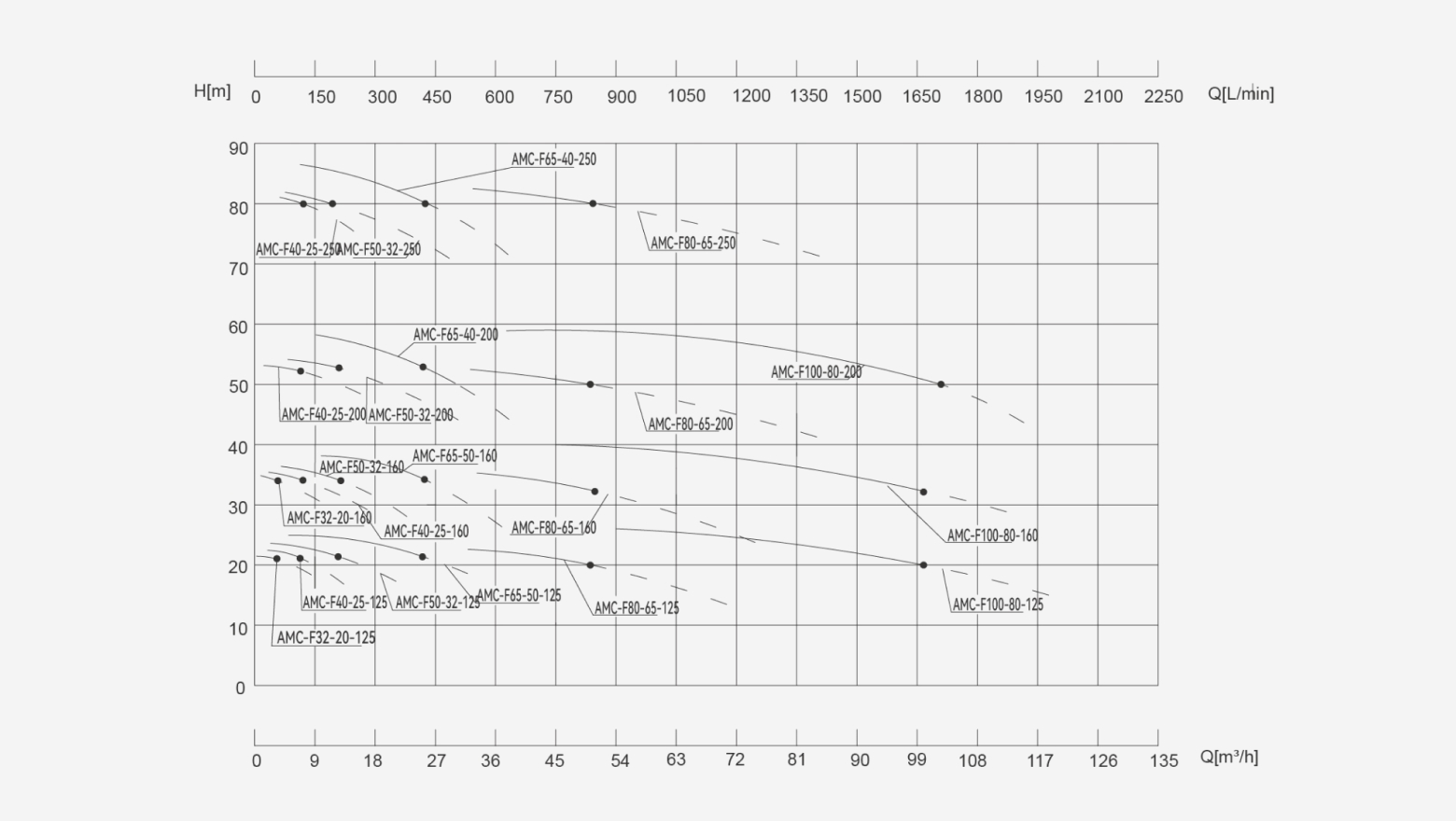

Performance Curve
The AMC-F Pump structure consists of the Pump Body, Impeller, Inside Magnet, Fluoroplastic Isolation Sleeve, Outer Magnetic Rotor, Bearing, Pump Cover, Axle Sleeve, and Motor, forming a leak-free & corrosion-resistant magnetic drive assembly for harsh chemical applications.
Working Condition
| Medium Temperature | Medium Density | Ambient Temperature | Maximum Elevation | Max withstand pressure |
|---|---|---|---|---|
| -20°C~+150°C | 0.6~2.0 | -50°C~+70°C | 5000m | 15bar |
Application Area
Petrochemical industry, acid and alkali production, non-ferrous metal smelting, pickling process in automobile manufacturing, rare earth separation, pesticides, dyes, pharmaceuticals, papermaking, electroplating, radio and other industries.

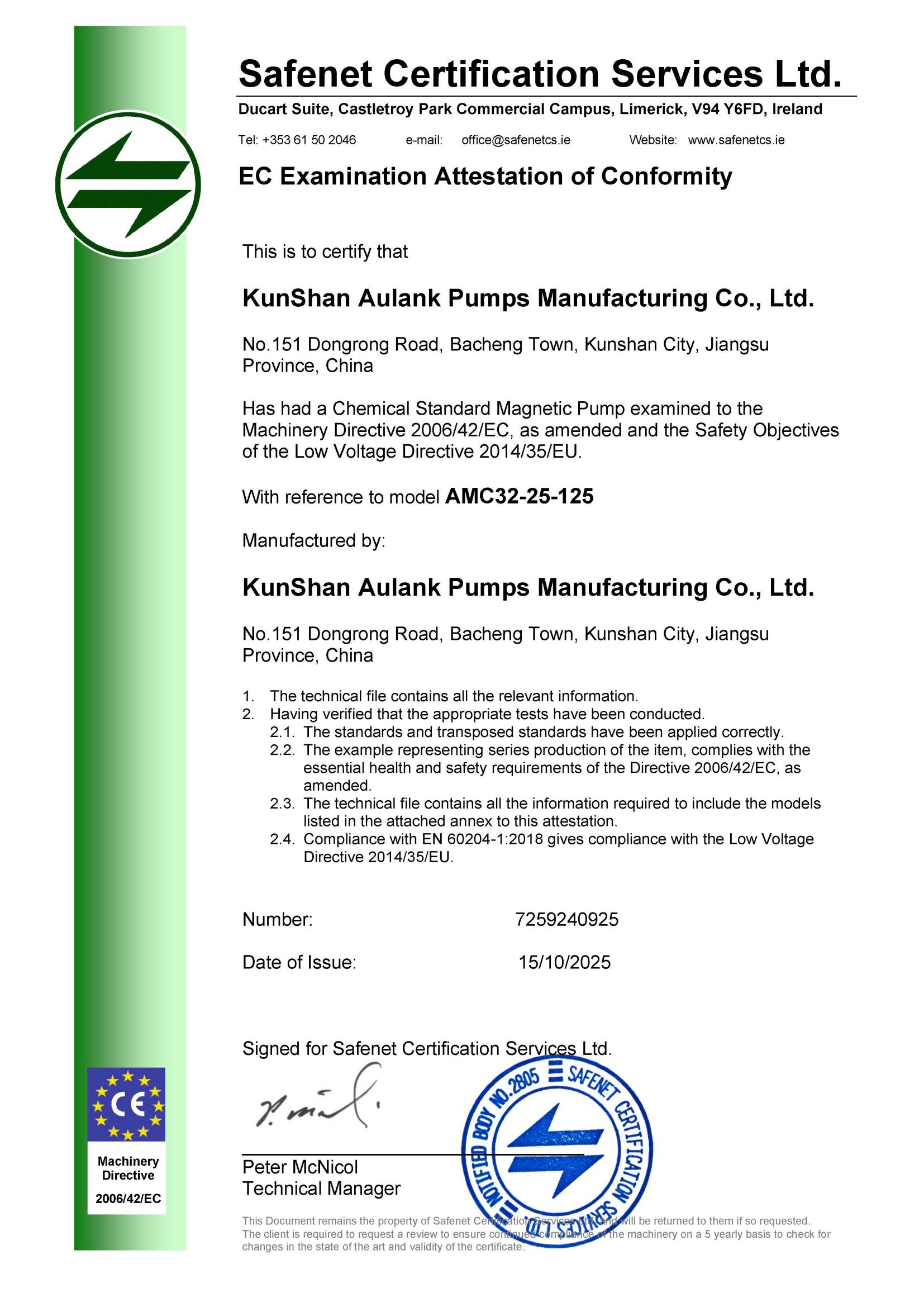

Product Certification
