MDP Permanent-Magnet Canned Vortex Magnetic Drive Pump
Product Overview
MDP Series Permanent-Magnet Canned Vortex Magnetic Drive Pumps are equipped with permanent magnet synchronous motors and suitable for a wide range of applications. These pumps feature a compact size, reversible operation, pulse-free output, and leak-free sealing. The integrated motor is compact, energy-efficient, and high-performance, ensuring low maintenance, safe operation, and an extended service life.
Product Features
- Integrated Pump-Motor Technology
- Permanent Magnet Synchronous Stepless Speed Regulation Technology
- Magnetic Coupling No-Heat Generation Technology
- Compact Structure & Smaller Footprint
Technical Specifications
| Model | Diameter | Motor | Performance Parameter | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Inlet | Outlet | Power (kW) | (Hp) | Voltage (V) | Frequency (Hz) | Speed (r/min) | Max Head (m) | Max Capacity (L/min) | |
| MDP-15 | G1/2" | G1/2" | 1.1 | 1.5 | 1ø-220 | 150-180 | 1000-4000 | 87 | 48 |
| MDP-30 | G3/4" | G3/4" | 2.2 | 3.0 | 1ø-220 | 150-180 | 1000-4000 | 116 | 74 |
*The above characteristic testing is based on water transfer at normal speed under 20°C. The performance parameter error is approximately ±10%. Pump performance varies depending on the proportion and density of the liquid medium.

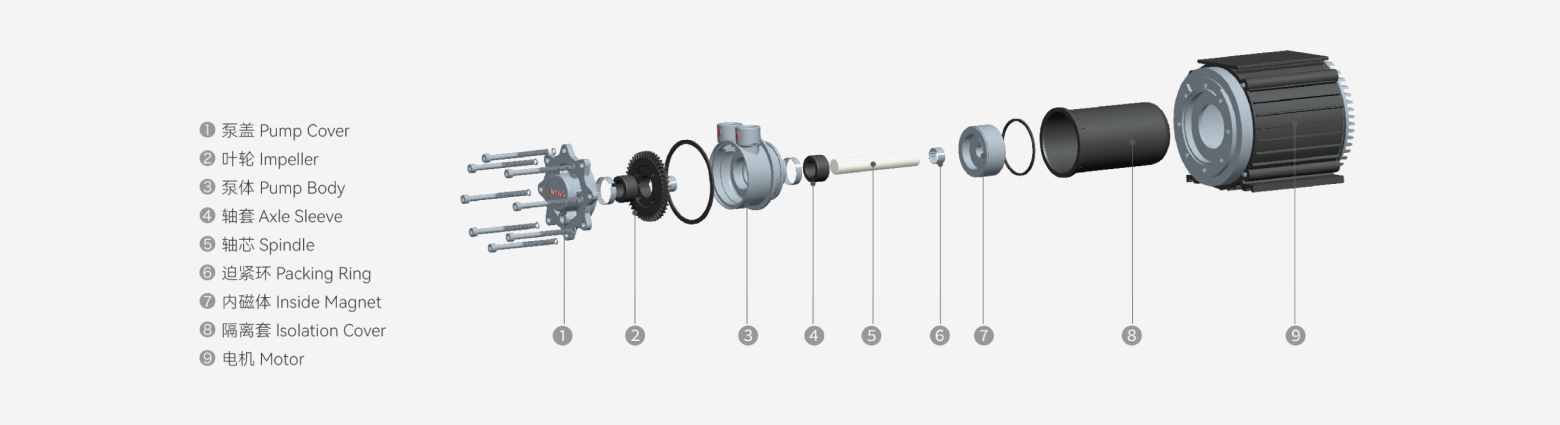

Pump Structure
The MDP Pump production structure consists of the Pump Cover, Impeller, Pump Body, Axle Sleeve, Spindle, Packing Ring, Inside Magnet, Isolation Cover, and Motor, forming a compact energy-efficient leak-free fluid transfer assembly.

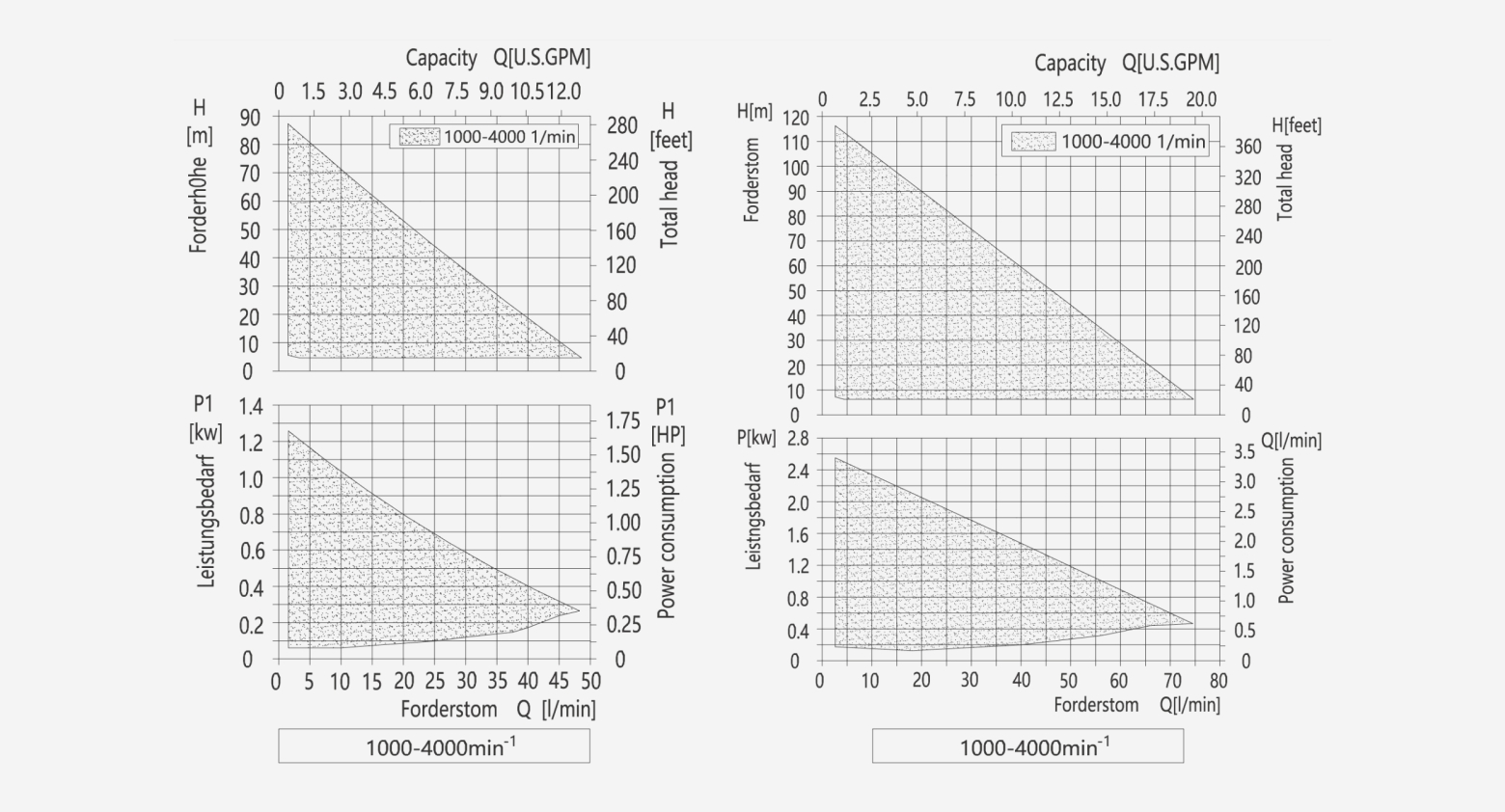

Performance Curve
The MDP Pump production structure consists of the Pump Cover, Impeller, Pump Body, Axle Sleeve, Spindle, Packing Ring, Inside Magnet, Isolation Cover, and Motor, forming a compact energy-efficient leak-free fluid transfer assembly.
Working Condition
| Thermal Conductivity Water | Thermal Conductivity Oil | Glycol/Silicone Oil | Ambient Temperature | Maximum Elevation | Max withstand pressure |
|---|---|---|---|---|---|
| 120°C | 120°C | -20°C~+120°C | 40°C | 5000m | 20bar |
Application Area
Semiconductor Precision Temperature Control, Precision Laboratory Equipment, Medical Devices, Hydrogen Generators, etc.
