(P)VP High-Pressure Vane Pump
Product Overview
The VP Series Vane Pumps are mainly composed of pressurizing chambers, vanes, rotors, pump bodies, and motors. According to application requirements, pump body materials can be optional with stainless steel or brass; drive motors are available in single-phase, three-phase, explosion-proof, variable-frequency, and DC types. These pumps feature self-priming capability, high lift, small flow rate, precise structure, compact size, low noise, and exquisite appearance.
Product Features
- High Pressure
- Low Noise
- Flow Rate Attenuates Smoothly as Pressure Increases
- Optional Canned Structure for Safe, Leak-Free Media Transfer
Technical Specifications
| Model | Diameter | Motor | Performance Parameter | Pump Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inlet | Outlet | Power (kW) | Power (Hp) | Voltage | Frequency (Hz) | Speed (r/min) | Max / Rated Head (m) | Max Capacity (L/h) | ||
| VP(E)-020(G)(S)-70 | G3/8" | G3/8" | 0.15 | 0.2 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 100 / 80 | 70 | 5 |
| VP(E)-033(G)(S)-100 | G3/8" | G3/8" | 0.25 | 0.33 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 160 / 120 | 100 | 8 |
| VP(E)-05(G)(S)-200 | G3/8" | G3/8" | 0.37 | 0.5 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 160 / 120 | 200 | 9.5 |
| VP(E)-05(G)(S)-300 | G3/8" | G3/8" | 0.37 | 0.5 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 160 / 120 | 300 | 9.5 |
| VP(E)-05(G)(S)-400 | G3/8" | G3/8" | 0.37 | 0.5 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 160 / 120 | 400 | 9.5 |
| VP(E)-07(S)-800 | G1/2" | G1/2" | 0.55 | 0.7 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 120 / 100 | 800 | 10.5 |
| VP(E)-07(S)-1000 | G1/2" | G1/2" | 0.55 | 0.7 | 3Φ-380 / 1Φ-220 | 50 | 1450 | 120 / 100 | 1000 | 10.5 |
*The above characteristic testing is based on water transfer at normal speed under 20°C. The performance parameter error is approximately ±10%. Pump performance varies depending on the proportion and density of the liquid medium.
Key Characteristics
Corrosion Resistant
Copper
Compact Size
Low Noise
Safe and Reliable
Energy Saving

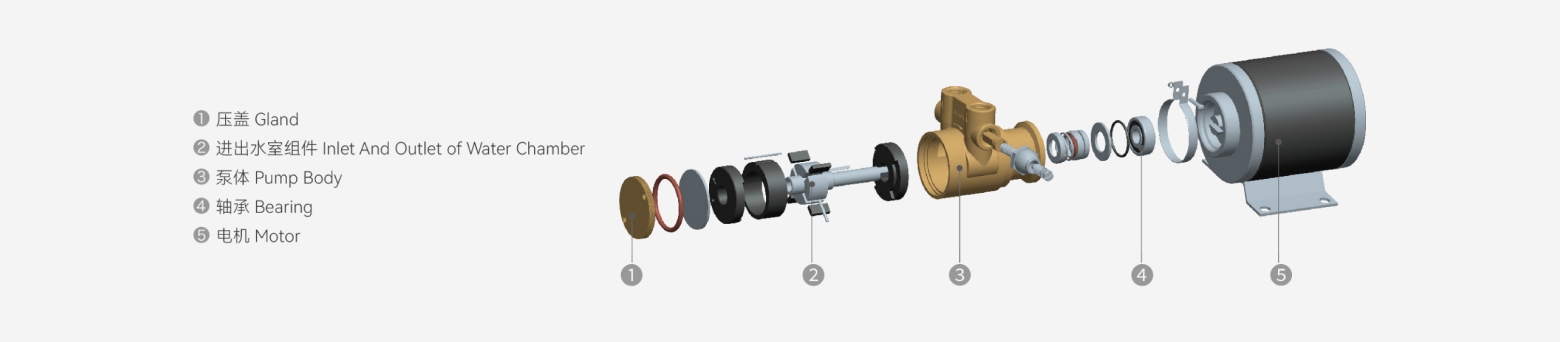

Pump Structure
(P)VP series pumps use a direct-coupled motor and pump body design with independently arranged bearing and water chamber components. The structure supports stable delivery under low-flow, high-head conditions and is suitable for metering, precision circulation, and continuous-duty applications.

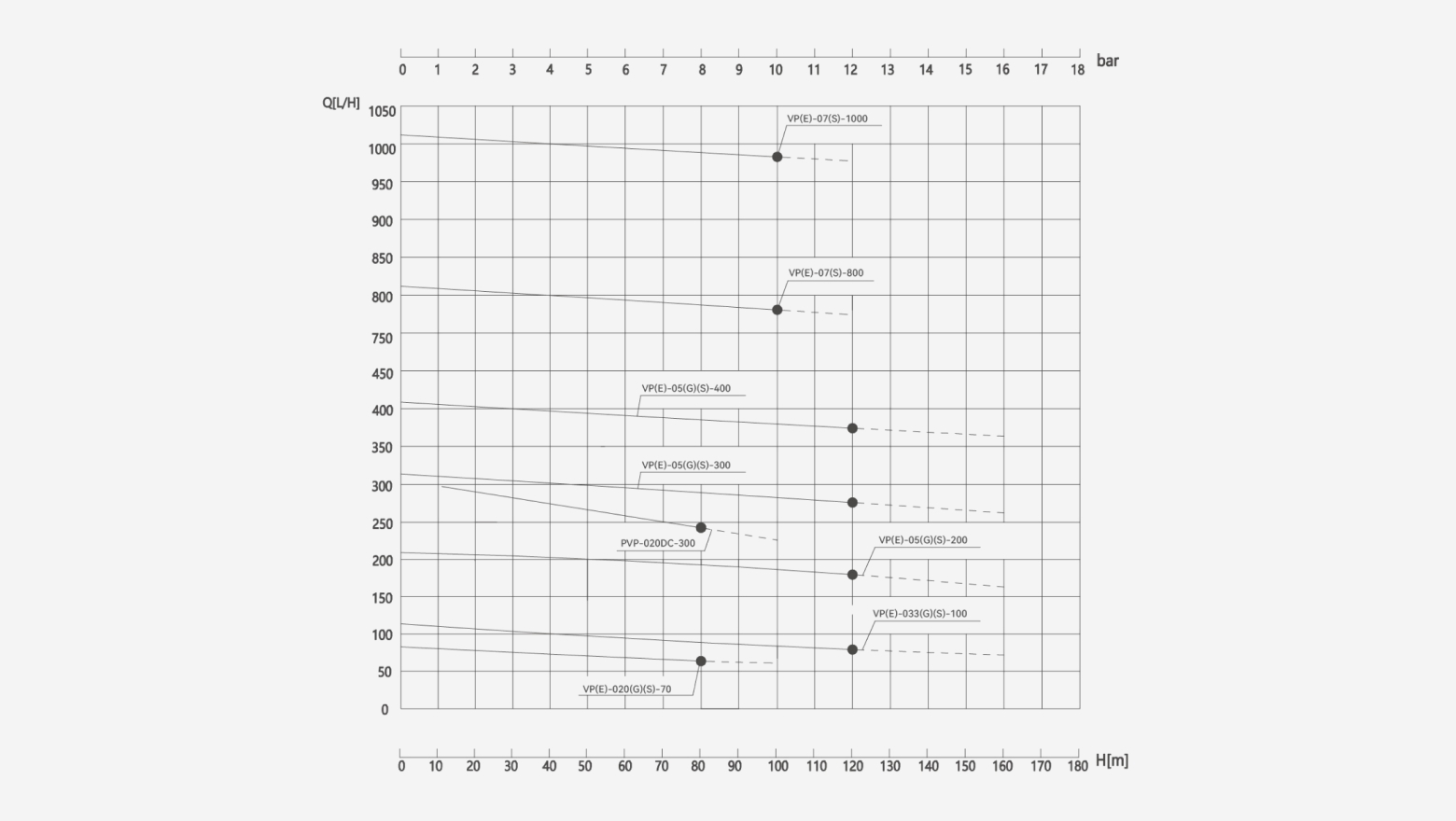

Performance Curve
(P)VP series pumps use a direct-coupled motor and pump body design with independently arranged bearing and water chamber components. The structure supports stable delivery under low-flow, high-head conditions and is suitable for metering, precision circulation, and continuous-duty applications.
Working Condition
| Thermal Conductivity Water | Ethylene Glycol | Working Temperature | Maximum Elevation | Max Withstand Pressure |
|---|---|---|---|---|
| +5°C ~ +90°C | -20°C ~ +90°C | -5°C ~ +40°C | 1000 m | 16 bar |
Application Area
Laser Equipment Cooling, Charging Pile Cooling, Medical Devices, Plasma Cutting Machines, X-ray and Medical Laser Cooling Systems, Laboratory Equipment Cooling Circulation, High-Pressure Cleaning Equipment, Reverse Osmosis Systems, Coffee Machines, Beverage Dispensers, Garden Atomization Systems, etc.

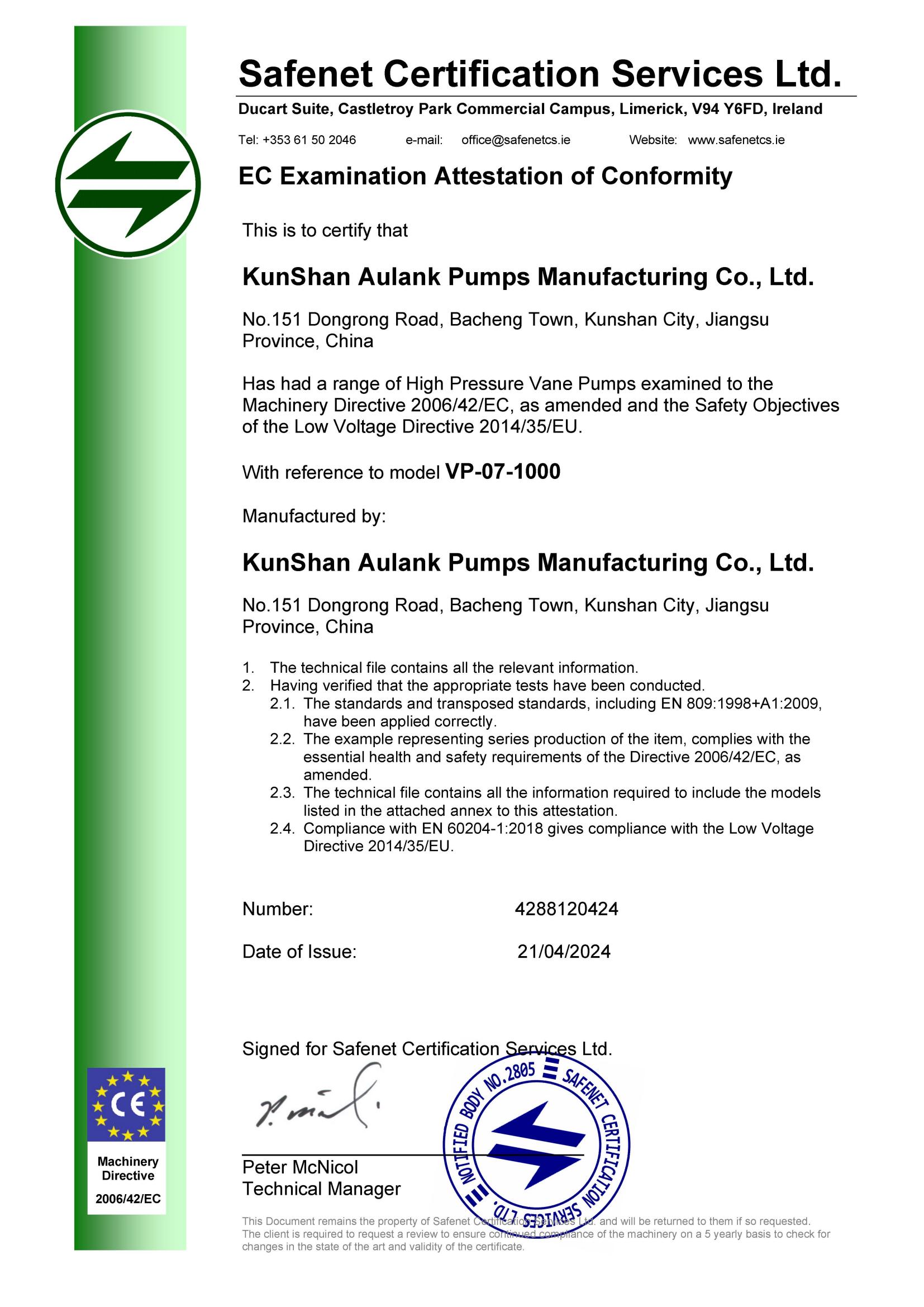

Product Certification
